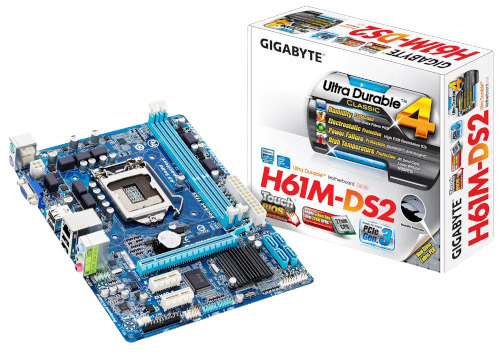

Gigabyte H61M-DS2 Full Specification Motherboard Type Standard Chipset Intel H61 Express Chipset Supported Processors 2nd & 3rd Generation processor 1155 Socket Max Memory 16 GB Onboard Video Yes Onboard Audio Realtek ALC887 Audio Codec High Definition Audio 2 / 4 / 5.1/7.1-Channel Onboard LAN 1 x Atheros GbE LAN chip (10/100/1000 Mbit) Connectors 1 x 24-pin ATX Main Power Connector 1 x 4-pin ATX 12V Power Connector 4 x SATA 3Gb/s Connectors 1 x CPU Fan Header 1 x System Fan Header 1 x Front Panel Header 1 x Front Panel Audio Header 2 x USB 2.0/1.1 Headers 1 x Parallel Port Header 1 x Serial Port Header 1 x clearing CMOS Jumper Other Features Support for DDR3 1333 / 1066 / 800 MHz Memory Modules Category: Motherboard
